ZED Box Xavier NX 8GB

The Stereolabs ZED Box is an industrial AI gateway offering powerful edge computing capabilities for autonomous robotics and spatial analytics. Specifically designed to use with the ZED 2 and ZED 2i cameras, it is powered by an NVIDIA® Jetson™ embedded GPU, enabling deployment of state-of-the-art AI and 3D vision solutions.

Processor Specifications

• NVIDIA® Jetson™ Xavier NX
• GPU: 384-Core NVIDIA® Volta™ with 48 Tensor Cores
• CPU : 6-Core NVIDIA® Carmel ARM v8.2 64 bit (6MB L2 + 4MB L3)
• DL accelerator: 2xNVDLA
• Memory : 8GB  LPDDR4x 59.7 GB/s

General Specifications

• Power: PoE+(30W) or DC-IN 5A 12-19V

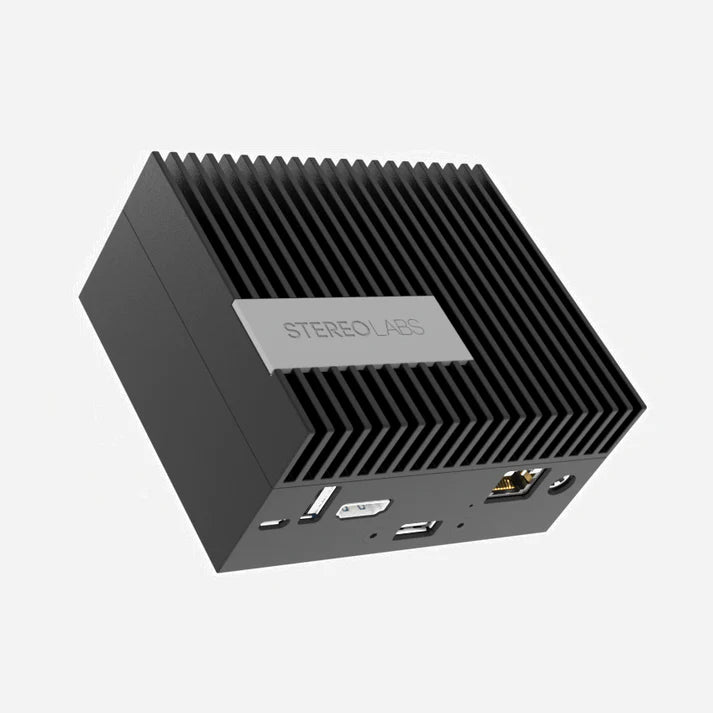

• Aluminium case passively cooled

• Dimensions: 109 x 92 x 52 mm (LxWxH) / 4.3 x 3.6 x 2.0 inches

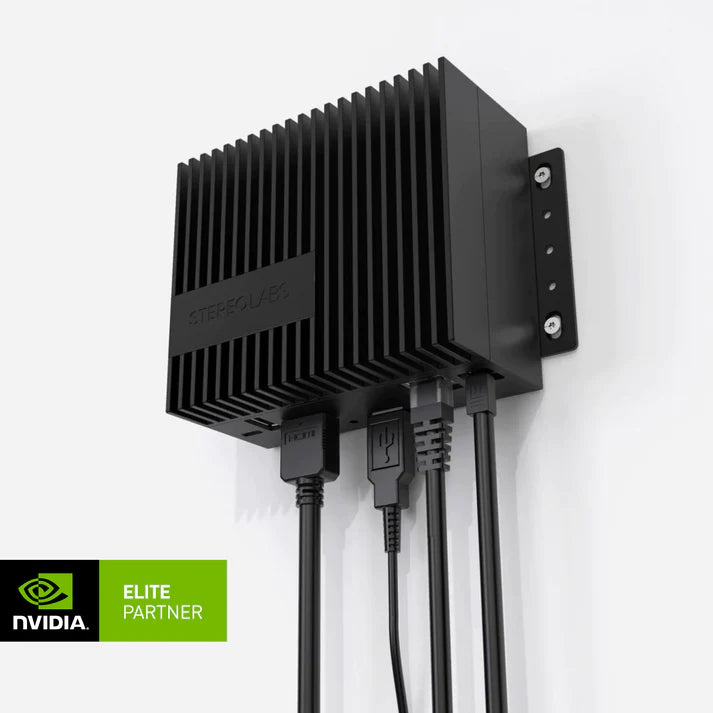

  Mounting options: 84x45mm mounting holes, wall (brackets provided) and DIN-rail mounting
• Weight: 1 kg (2.20lb)

Storage Options

• eMMC 16GB
• NVMe SSD 256GB or 1TB
